Link Engine Management

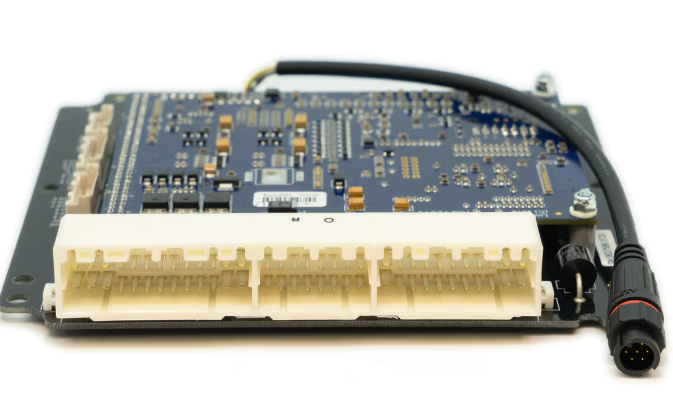

MR2Link V3 - TST205X -222-4000

MR2Link V3 - TST205X -222-4000

Special Order

Regular price $2,113.95 CAD
Regular price Sale price $2,113.95 CAD
Sale Sold out
Shipping calculated at checkout.
  • This is a SPECIAL ORDER item, please allow an additional 20-30 days delivery. IF longer ETA or delays we will conatct you. Thank-You.
Shipping: All warehouse products ship to our Hamilton, Ontario location prior to shipping out to you or for in-store pick-up. Ships from our location in 3-5 business days after.

Easy to install. Affordable. Reliable.
G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.
This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

Designed for the 3SGTE engine in the models specified below.

  • Please check your pinoutconnector matches the header in the listed photo before purchasing.
  • This ECU works for manual transmissions only.
  • ECU does not fit in the original housing of non-turbo cars
  • Most factory features are supported.
  • Check the features tab for I/O expansion options.
  • This ECU will need a modification before E-Throttle is usable.

Suitable applications:

  • Toyota MR2 1993 onwards (Gen3 3SGTE) not including RedTop Beams
  • Celica ST205
  • Carlos Sainz Edition
  • GT-Four RC
  • Group A Rallye

G4X PlugIn Key Features (where applicable):
Up to 6D fuel and ignition mapping
Precision closed loop cam control (four cam, independent control)
Sequential fuel delivery
Digital triggering, all OEM patterns
OEM idle hardware supported
5D boost control with three switchable tables
Motorsport features - antilag, launch, flat shift
Continuous barometric correction (on board)
CAN port
QuickTune - automated fuel tuning
Individual cylinder correction
USB tuning cable included
Stats recording into on-board memory
Gear compensations for spark, boost and fuel
Real time selectable dual fuel, ignition and boost maps
Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
Boost control referenced to gear, speed or throttle position
512 mega bytes data logging memory
Staged injection
Knock with "windowing"

I/O Expansion Options
The following expansion connector inputs/outputs are provided:
Expansion connector 1
Gnd                Sensor Ground Only
+5V Out        Low Current +5V Supply
DI 5                Digital Input
DI 6                Digital Input
DI 4                Digital Input
An Volt 7        Analog 0-5V input
An Volt 5        Analog 0-5V input
An Volt 6        Analog 0-5V input

Expansion connector 2
Ign 5                Ignition 5 Auxiliary Output
Ign 6                Ignition 6 Auxiliary Output
Ign 7                Ignition 7 Auxiliary Output
Ign 8                Ignition 8 Auxiliary Output
DI 9                Digital Input
DI 10                Digital Input
Volt 8                Analog 0-5V input
Volt 9                Analog 0-5V input

Download Manual



Click here to download the full Specifications PDF.

MPN: 222-4000

SKU:222-4000
