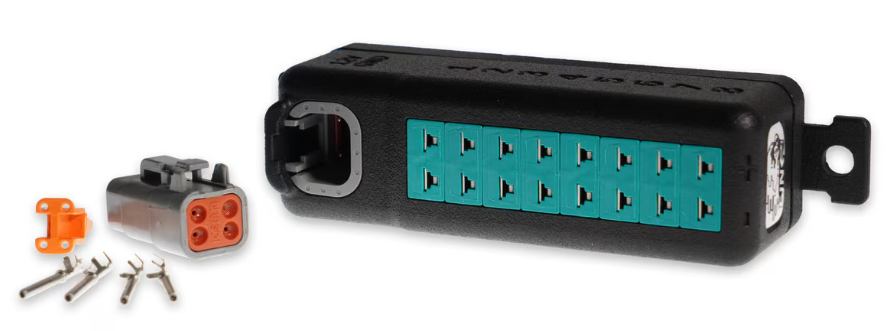

LINK TCC08 8 Channel EGT to CAN Module - 101-0388

LINK TCC08 8 Channel EGT to CAN Module - 101-0388

Special Order

$424.95 CAD
$424.95 CAD
Sale Sold out
Shipping calculated at checkout.
  • This is a SPECIAL ORDER item, please allow an additional 20-30 days delivery. IF longer ETA or delays we will conatct you. Thank-You.
Shipping: All warehouse products ship to our Hamilton, Ontario location prior to shipping out to you or for in-store pick-up. Ships from our location in 3-5 business days after.
 More payment options

Pickup available at NV Auto

Usually ready in 2-4 days

Details:

Link TCC08 8 Channel EGT to CAN module, powered by CANchecked

The TCC08 EGT to CAN module allows you to connect up to eight Type-K thermocouples and send the values via CAN bus and/or monitor them directly on your wireless enabled device.

Type-K thermocouples are suitable for various applications such as measuring exhaust gas temperature (EGT), temperatures before/after the intercooler, turbo housings, cylinder head temperatures, water temperature, oil temperature and more. All measurements are cold junction compensated with a measuring range of 0 to 1250°C in 0.25°C resolution (14bit).

The TCC08 feature a four-pin DTM connector for CAN & power that is pin compatible with Links standard CAN pinout and CAN cables range. CAN 2.0A/B standard is supported with flexible configuration.

Wireless connectivity allows you to configure and update your module via smartphone or PC and query the current temperature and thermocouple status.

Features:

  • 8 x cold junction compensated type-K inputs
  • CAN Bus connection to ECU (Pre-Configured for Link ECU)
  • Measuring range from 0 to 1250°C (32 to 2282°F) with 0.25°C resolution
  • Detection of short circuit to ground or if no type-K is connected
  • Standard mini k thermocouple connector
  • Full configuration and monitoring over wireless
  • Adjustable sample frequency up to 100Hz

Box Contents:

1 x CAN EGT Module

1 x DTM4 Mating Connector Kit

2 x Link Stickers

Set-up and Installation Guide

Specifications:

  • DTM 4 CAN Pinout (Supports Links CAN pinout schema and CAN cables range)
    Pin 1: 12V Pin 2: Ground Pin 3: Can Low Pin 4: Can High
  • Accuracy: maximum 2% deviation
  • Dimension (L x W x H) – 129 x 31.5 x 34.6mm

Configuration Options:

The module can be configured via wireless:

  • Can Speed: 125kbps, 250kbps, 500kbps, 1Mbps
  • Emulation: Standard, All major aftermarket EGT/Thermocouple to CAN Modules
  • Change of standard Can Bus ID
  • Change Big/Little Endian

Set-up and Installation Guide

 MPN: 101-0388

101-0388
