LINK IGN1A - High Powered Inductive Smart Coil (Integrated Ignitor) - 101-0291

LINK IGN1A - High Powered Inductive Smart Coil (Integrated Ignitor) - 101-0291

Special Order

$135.95 CAD
$135.95 CAD
Sale Sold out
  • This is a SPECIAL ORDER item, please allow an additional 10-20 days delivery. IF longer ETA or delays we will conatct you. Thank-You.
Special Order - Final Sale: No Exchanges, Refunds, or Returns.
Shipping: All warehouse products ship to our Hamilton, Ontario location prior to shipping out to you or for in-store pick-up. Ships from our location in 3-5 business days after.

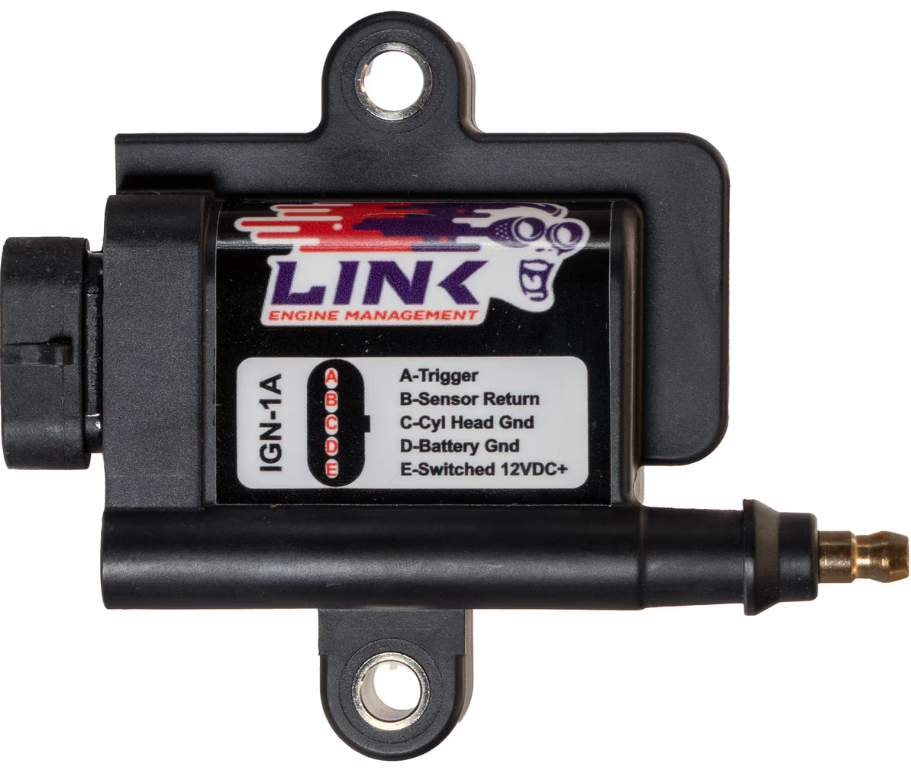

High Power Inductive Coil with built-in ignitor.

  • Produce 103 mJ per spark, with a longer spark duration (2.9 ms) than what you’d see with a capacitive discharge
  • Built-in ignitor with external heat sink
  • Requires HEI-type plug wire ends/ boots. Compatible with most brands of HT lead
Box Contents

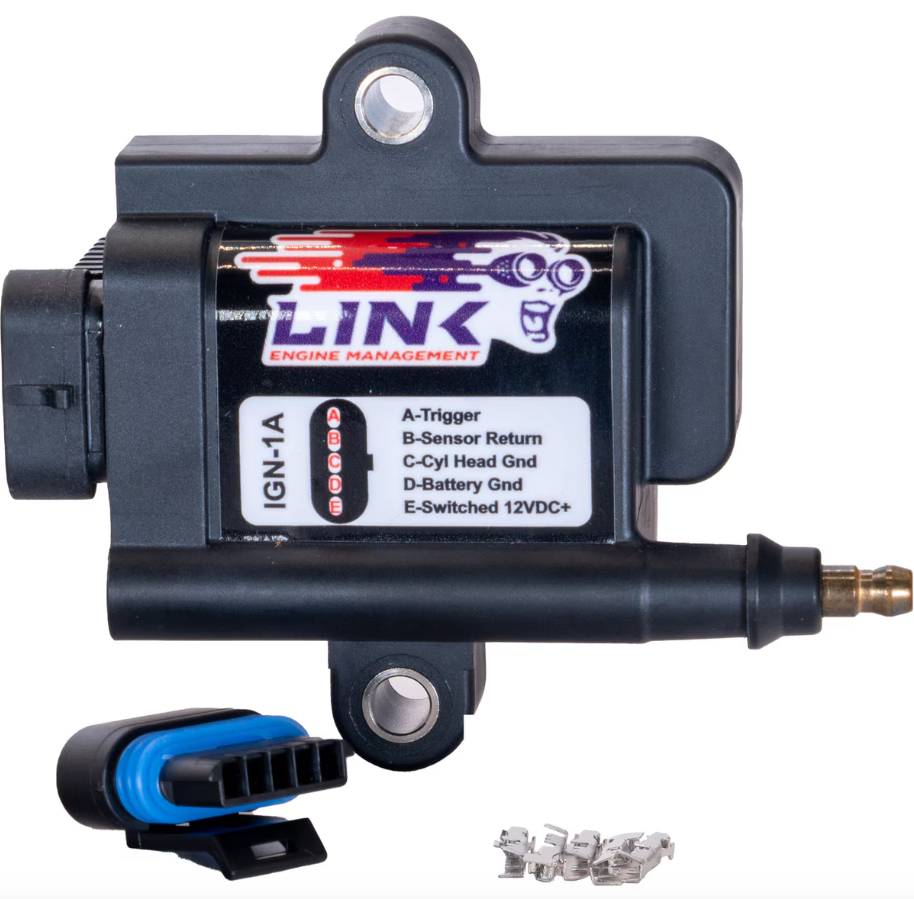

1 x IGN1A Smart Coil

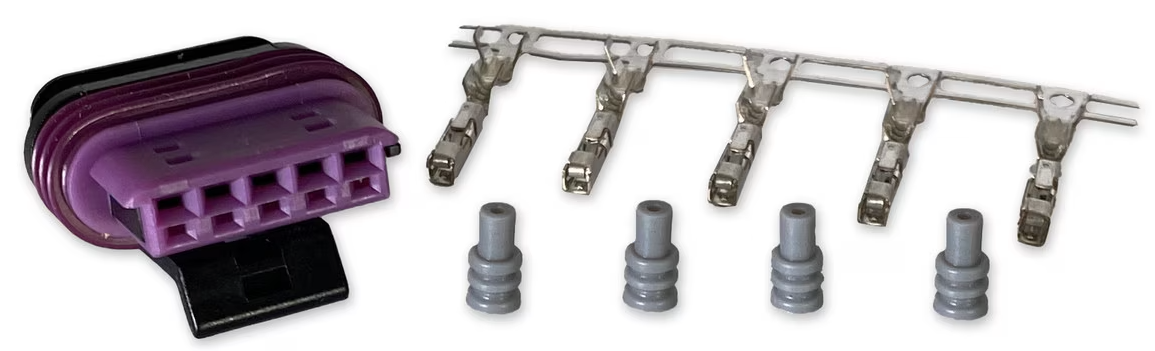

1 x Mating Connector Kit

Link to User Guide
Specifications:
Connector Pinout:
A – Ignition signal from ECU
B – Logic ground, connect to ECU ground
C – Spark wire ground, connect to cylinder head
D – Power ground, connect to battery negative
E – 12 volt power
The coil dwell starts when a 5 volt signal is applied to pin A and the coil fires when the voltage drops to zero. The signal is similar to an LSx coil, although it does need a bit more current to trigger.
Smart Coil specs:
Minimum Output Voltage (no load, at recommended dwell): 40,000 volts Maximum Output Voltage: up to 81,000 volts (+/- 10%) Output energy: 103 mJ Spark duration: 2.9 ms Primary resistance: 0.5 ohms (not directly measurable) Primary inductance: 4.8 mH (not directly measurable) Secondary resistance: 8,500 ohms Secondary inductance: 22.5 H Turns ratio: 71.1 Maximum current: 19 amps Maximum battery voltage: 17 volts Nominal dwell: 3.0 ms Excessive dwell or duty cycle may cause meltdown.
 As with any race coil, the manufacturer does not provide a warranty.
MPN: 101-0291
