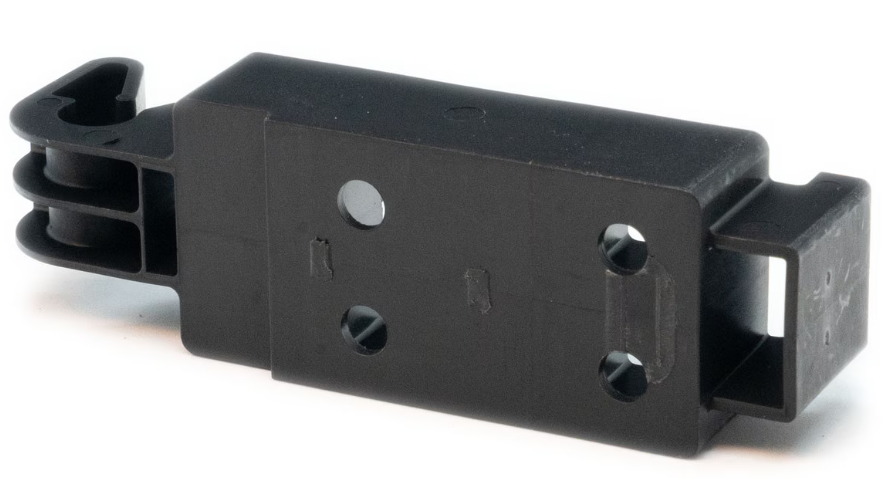

LINK Ethanol Content Sensor (ECS) - 101-0034

Name: LINK Ethanol Content Sensor (ECS) - 101-0034
Brand: Link Engine Management
SKU: 101-0034
Price: 344.95 CAD
Availability: InStock

Special Order

Quantity

$344.95 CAD

Sale Sold out

Shipping calculated at checkout.

This is a SPECIAL ORDER item, please allow an additional 20-30 days delivery. IF longer ETA or delays we will conatct you. Thank-You.

Shipping: All warehouse products ship to our Hamilton, Ontario location prior to shipping out to you or for in-store pick-up. Ships from our location in 3-5 business days after.

Details:

Looking to run flex-fuel? Then the Ethanol Content Sensor is a must have. The Ethanol Content Sensor measures the ratio of ethanol to petrol in a flex fuel vehicle. This sensor also measures fuel temperature. Compatible with all current Link Wire-In and Plug-In ECU’s. Uses 1 Digital input on the ECU. The sensor is fitted to the vehicle’s fuel return line anywhere between the fuel pressure regulator and the fuel tank.

AN-6 Fittings
Includes plug and pin kit

Technical Specs:

The pinout is indicated on the sensor itself (from left to right looking into connector on sensor) as :
1.) Vcc (+12V supply)
2.) GND (ground)
3.) Vout (digital signal out)

MPN: 101-0034

SKU:101-0034
