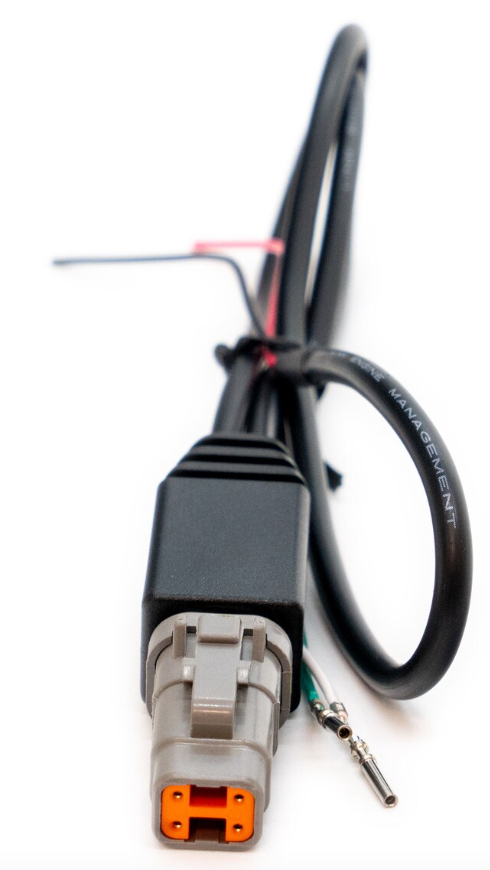

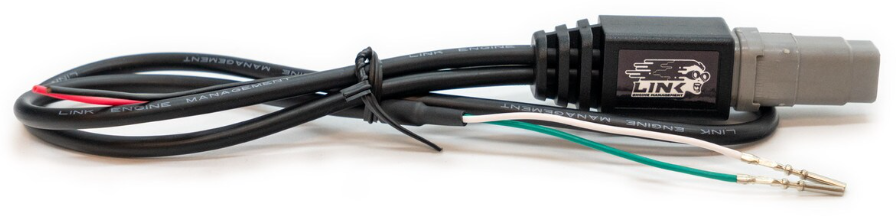

LINK CANSS - CAN Connection Cable for WireIn ECU’s (ECU Header CAN) - 101-0210

Name: LINK CANSS - CAN Connection Cable for WireIn ECU’s (ECU Header CAN) - 101-0210
Brand: Link Engine Management
SKU: 101-0210
Price: 62.95 CAD
Availability: InStock

Special Order

Quantity

$62.95 CAD

Sale Sold out

Shipping calculated at checkout.

This is a SPECIAL ORDER item, please allow an additional 20-30 days delivery. IF longer ETA or delays we will conatct you. Thank-You.

Shipping: All warehouse products ship to our Hamilton, Ontario location prior to shipping out to you or for in-store pick-up. Ships from our location in 3-5 business days after.

Details:

Required to add CAN communication to WireIn ECU's which have CAN accessible via the Header.

Compatible ECU's:

G4X/G4+ Atom (CAN1)
G4X/G4+ Monsoon (CAN1)
G4X/G4+ Storm (CAN2)
G4X/G4+ Xtreme (CAN2)
G4X/G4+ Fury (CAN2)
G5 Voodoo Pro (CAN1)
G4+ Force (CAN2)
G4+ Thunder (CAN2)

Specs:

DTM4 Male to Flying leads. CAN H & L crimped with Superseal terminals. 12V & GND Flying Leads. Length: CAN Loom length 300mm (Flying leads 500mm long)

DTM4 Pin Out:

Pin 4: CAN H
Pin 3: CAN L
Pin 2: Ground
Pin 1: 12V

MPN: 101-0210

SKU:101-0210
