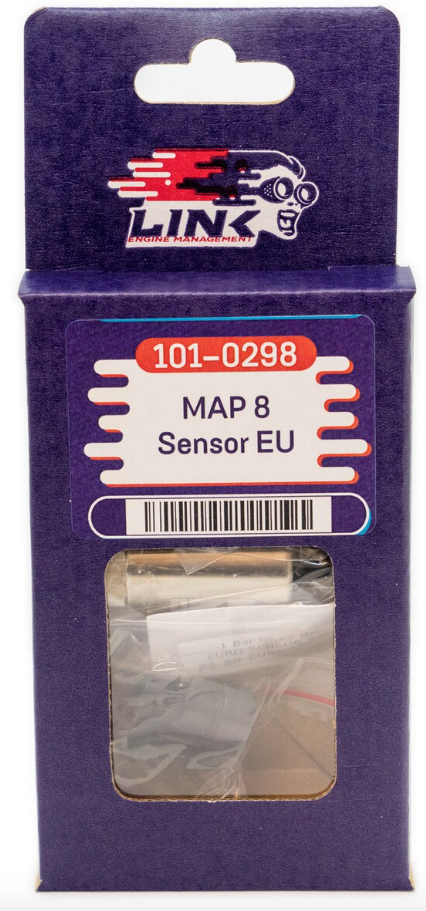

LINK 8 Bar MAP Sensor EU (MAP8EU) - 101-0298

Name: LINK 8 Bar MAP Sensor EU (MAP8EU) - 101-0298
Brand: Link Engine Management
SKU: 101-0298
Price: 314.95 CAD
Availability: InStock

Special Order

Quantity

$314.95 CAD

Sale Sold out

Shipping calculated at checkout.

This is a SPECIAL ORDER item, please allow an additional 20-30 days delivery. IF longer ETA or delays we will conatct you. Thank-You.

Shipping: All warehouse products ship to our Hamilton, Ontario location prior to shipping out to you or for in-store pick-up. Ships from our location in 3-5 business days after.

The 8 Bar MAP Variohm Eurosensor reads up to 7 Bar absolute pressure.
This means that it is suitable for turbo or supercharged applications running up to 7 Bar (or 101psi) of boost pressure.

Includes Plug and Pins
Push wire through connector; crimp on terminal; pull wire/terminal back into connector
Using Link G4/G4+/G4X ECU’s select the MAP sensor type in PC Link as ‘Variohm 8 Bar’

Calibration - 0kpa = 0.5v, 800kpa = 4.5v
PIN A = 0v
PIN B = 5v
PIN C = Signal

MPN: 101-0298

SKU:101-0298
