Link Engine Management

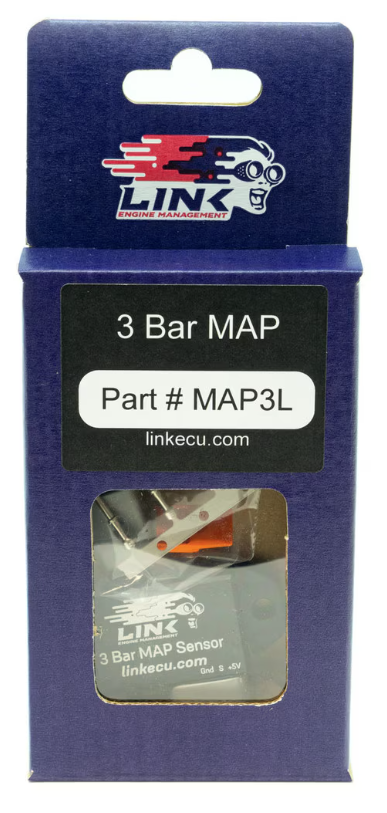

LINK 3 Bar MAP Sensor (MAP3) - 101-0164

LINK 3 Bar MAP Sensor (MAP3) - 101-0164

Special Order

$178.95 CAD
$178.95 CAD
Sale Sold out
Shipping calculated at checkout.
  • This is a SPECIAL ORDER item, please allow an additional 20-30 days delivery. IF longer ETA or delays we will conatct you. Thank-You.
Shipping: All warehouse products ship to our Hamilton, Ontario location prior to shipping out to you or for in-store pick-up. Ships from our location in 3-5 business days after.
This Link MAP sensor reads up to 3 Bar absolute pressure. This means that it is suitable for turbo or supercharged applications running up to 2.0 Bar (or 29psi) of boost pressure. The wiring pinout for this sensor is indicated on the sensor.
  • Includes Deutsch 3-pin connector kit
  • Easy to mount via 2 bolt holes. Note that the sensor should be mounted higher than the intake manifold port that the hose connects to.
  • Compact aluminium enclosure
  • Mechanical connection via 4mm hose connector nipple
  • Using Link G4/G4+/G4X ECU’s select the MAP sensor type in PC Link as ‘Link 3 Bar’

MPN: 101-0164

101-0164
