HKS

HKS FA20 89.5mm Bore 1.2mm Thick Grommet Type Head Gasket HKS23002-AT002

Special Order

Manufacturer Part Number: 23002-AT002

Quantity

$572.95 CAD

Sale Sold out

This is a SPECIAL ORDER item, please allow an additional 10-20 days delivery. IF longer ETA or delays we will conatct you. Thank-You.

Shipping: All warehouse products ship to our Hamilton, Ontario location prior to shipping out to you or for in-store pick-up. Ships from our location in 3-5 business days after.

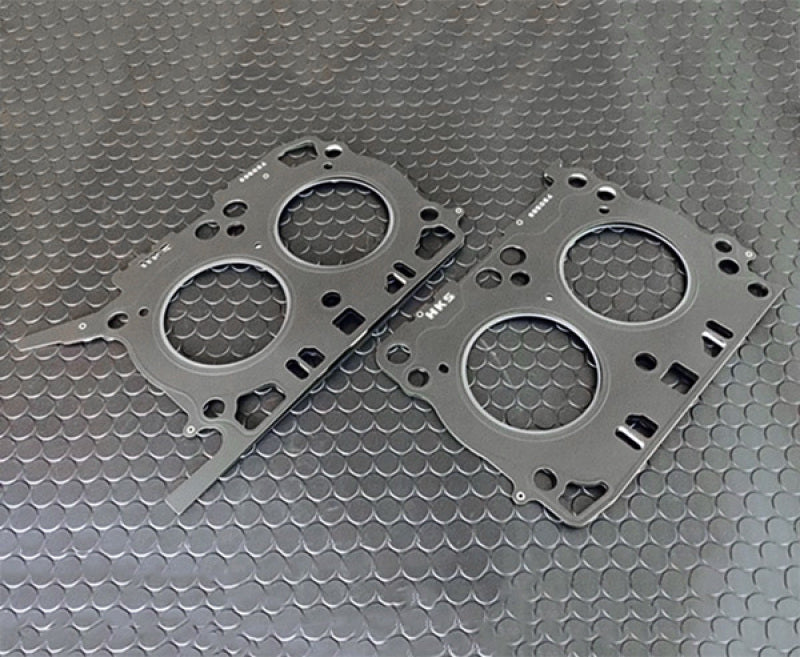

HKS FA20 89.5mm Bore 1.2mm Thick Grommet Type Head Gasket is a premium 1.2mm thick, 89.5mm bore grommet-type metal head gasket for the Subaru/Toyota FA20 engine, designed for high-boost turbo/supercharger setups. It increases sealing pressure to prevent gasket failure and is ideal for 2013–2021 BRZ/FRS/86 engines, often used with reinforced head studs for maximum durability.

Grommet Technology: Provides higher gas seal surface pressure than traditional stopper-type gaskets, improving sealing limits.
Engine Suitability: Specifically designed for the FA20 engine found in the Subaru BRZ, Toyota 86, and Scion FRS (2013-2021).
Durability: Ideal for high-horsepower or forced induction builds to prevent gasket failure.
Independent Bead: Features independent beads for water and head bolt holes to improve sealing and prevent cracking around head bolts.
High Compression Setup: Provides a 10.4 compression ratio when used with HKS low-comp pistons.

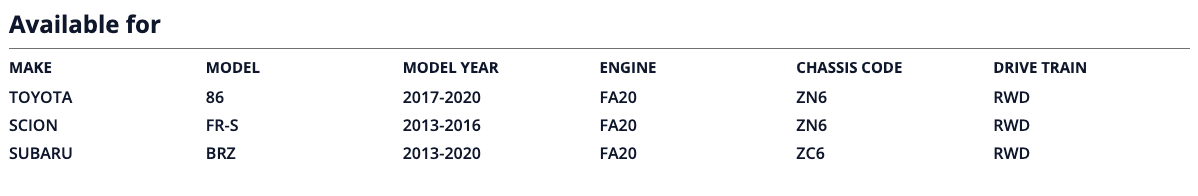

- Subaru BRZ (2013–2021)
- Toyota 86 (2017–2021)
- Scion FR-S (2013–2016)

SKU:HKS23002-AT002
