Link Engine Management
G5 CAN Connection Cable - 101-5104
G5 CAN Connection Cable - 101-5104
Special Order
Regular price
$86.95 CAD
Regular price
Sale price
$86.95 CAD
Unit price
/
per
Special Order - Final Sale:
No Exchanges, Refunds, or Returns.
Shipping: All warehouse products ship to our Hamilton, Ontario location prior to shipping out to you or for in-store pick-up. Ships from our location in 3-5 business days after.
Couldn't load pickup availability

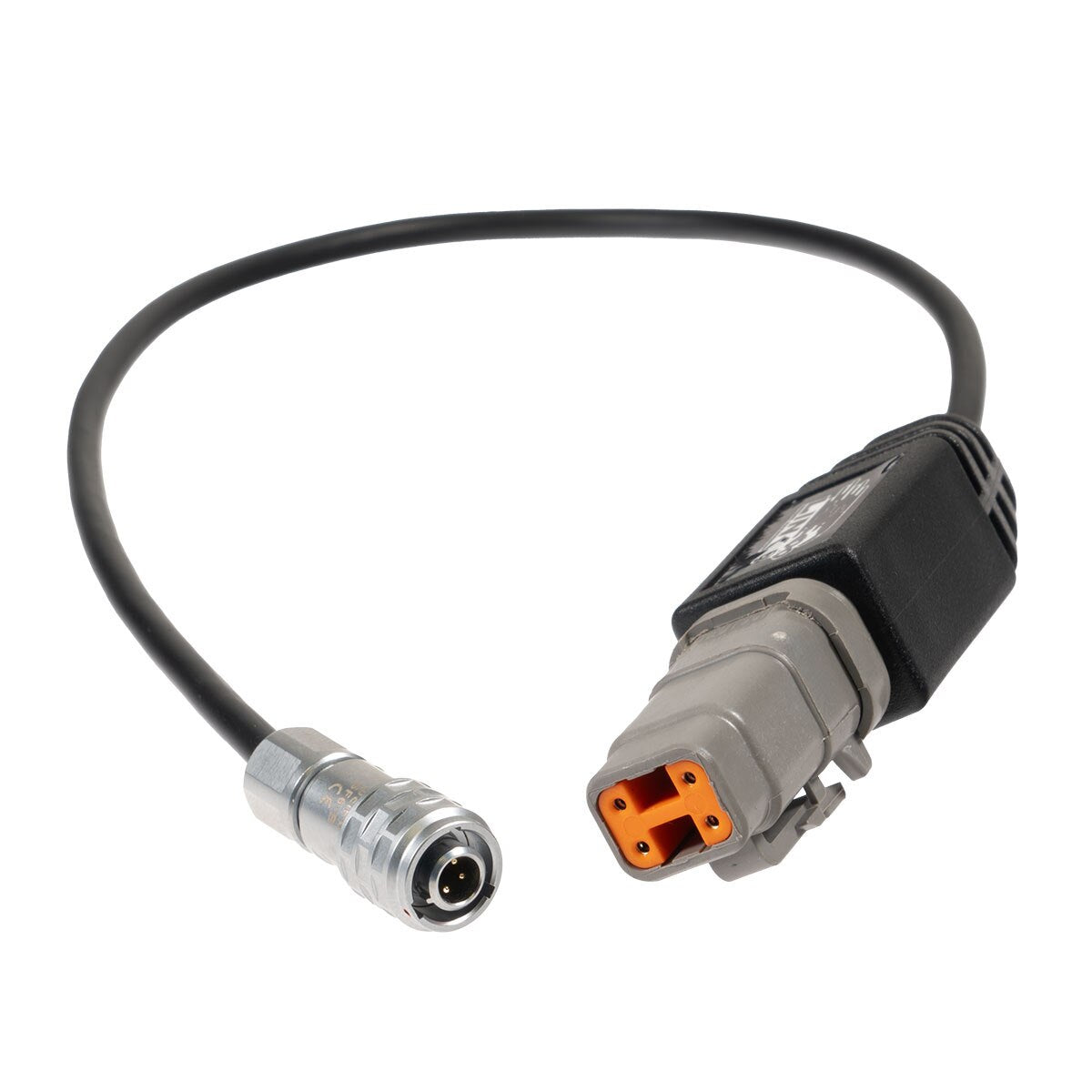

The Link G5 CAN Connection Cable provides access to CAN 1 on G5 Voodoo ECUs, allowing CAN devices and accessories to be connected through the 4-pin WEIPU CAN connector on the ECU. The 300 mm cable terminates in a DTM4 male connector and provides CAN High, CAN Low, 12V and Ground, with power supplied directly from the ECU.
Models Supported |
G5 Voodoo ECUs |
Specifications:
Highlights |
DTM4 Pin Out Pin 4: CAN High Pin 3: CAN Low Pin 2: Ground Pin 1: 12V |
Cable Length |
300mm |
Electrical |
Maximum Continuous Current Draw: 3A |
Misc. |
Power for CAN is supplied via this cable from the ECU |
Connector |
DTM4 Male to WEiPU SF610B/P4 |
Share
SKU:101-5104
