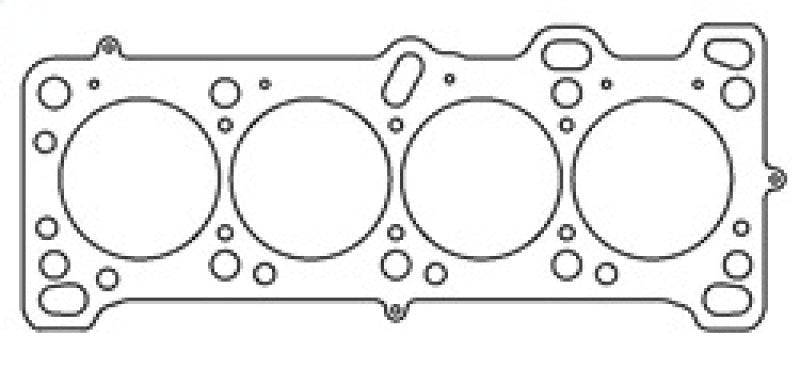

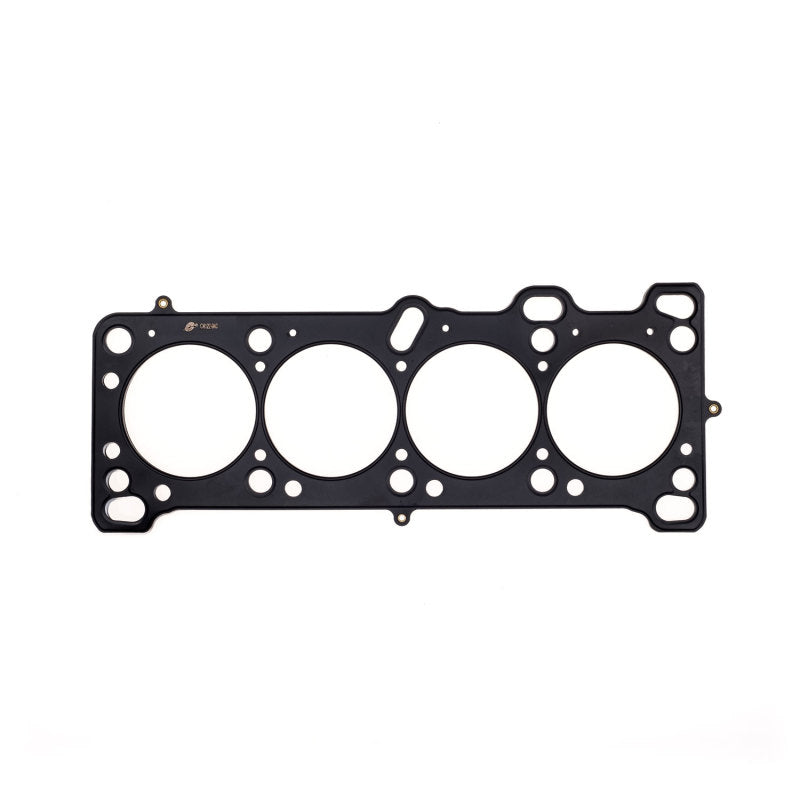

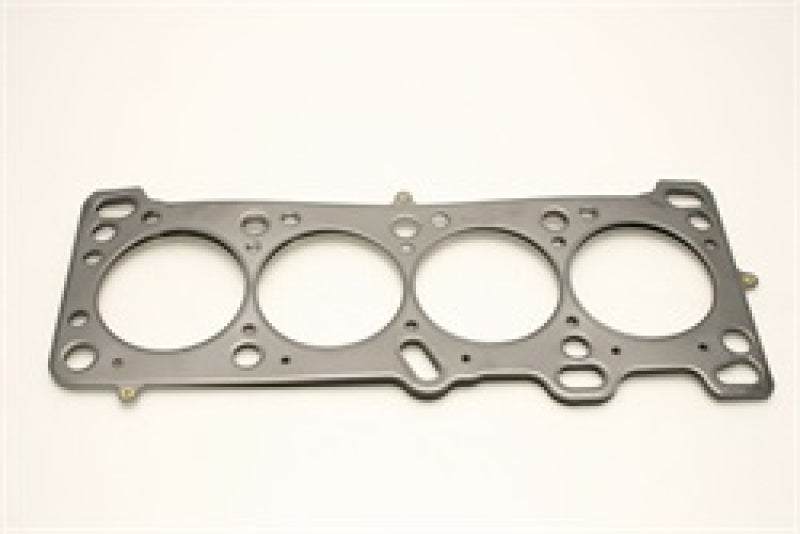

Cometic Mazda Miata 1.6L 80mm .080 inch MLS Head Gasket B6D Motor

Cometic Mazda Miata 1.6L 80mm .080 inch MLS Head Gasket B6D Motor

  • Manufacturer Part Number: C4122-080
Warehouse has 1 in stock
Regular price $201.95 CAD
Regular price $209.98 CAD Sale price $201.95 CAD
Sale Sold out
Shipping calculated at checkout.
  • This is a SPECIAL ORDER item, please allow an additional 20-30 days delivery. IF longer ETA or delays we will conatct you. Thank-You.
Shipping: All warehouse products ship to our Hamilton, Ontario location prior to shipping out to you or for in-store pick-up. Ships from our location in 3-5 business days after.
Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.080". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

This Part Fits:

Year Make Model Submodel
1988-1993 Mazda 323 Base
1988 Mazda 323 DX
1988 Mazda 323 GT
1988-1989 Mazda 323 GTX
1988-1989 Mazda 323 LX
1988-1993 Mazda 323 SE
1990-1993 Mazda Miata Base
1993 Mazda Miata LE
1991 Mazda Miata SE
1992-1993 Mazda MX-3 Base
1991-1994 Mercury Capri Base
1991-1994 Mercury Capri XR2

SKU:CGSC4122-080
